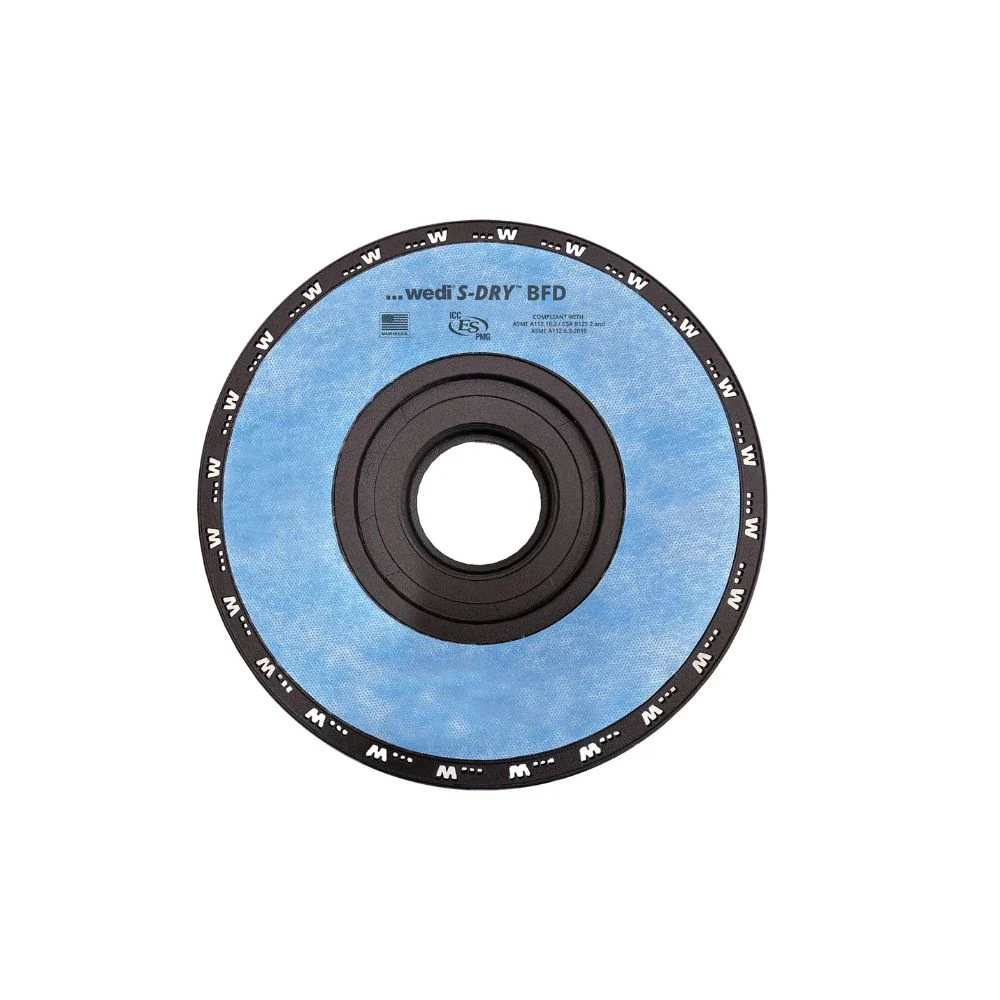

wedi S-DRY Bonding Flange Drain
wedi S-DRY BFD Bonding Flange Drain
wedi S-DRY BFD (Bonding Flange Drain) is designed for use with wedi S-DRY shower system components in mortar bed shower installations. It creates a secure connection between the waterproofing membrane and drain system to support consistent drainage and long-term shower performance.
Features & Benefits
-
Bonding Flange Design – Provides a secure connection point between the waterproofing membrane and the drain system.
-
Fleece-Covered Flange – Supports direct bonding with wedi S-DRY waterproofing materials.
-
Built for Mortar Bed Installations – Designed specifically for traditional and mortar bed shower construction.
-
Pressure-Fit Pipe Connection – Connects directly to ABS or PVC pipe cut flush with the subfloor.
-
Adjustable Installation Height – Sits approximately 3/4 in. above the floor and can be raised with mortar to align with the finished shower floor.
-
Drain Cover Flexibility – Compatible with separately selected wedi S-DRY drain covers so the finished look can match the project design.
Specifications
| Attribute | Details |
|---|---|
| Product Name | wedi S-DRY BFD |
| Item Number | US9476006 |
| Product Type | Bonding flange drain (BFD) |
| Application | Mortar bed shower installations |
| Flange Surface | Fleece-covered for membrane bonding |
| Pipe Compatibility | ABS and PVC, flush cut to subfloor |
| Base Height | 3/4 in. above floor |
| Height Adjustment | Adjustable with mortar |
| Drain Cover | Sold separately |
| Country of Origin | Made in the U.S.A. |
