Illuminiche Low Voltage 25' wire
Illuminiche Low Voltage Wire – 25 ft (With or Without Harness)
The Illuminiche Low Voltage Wire provides safe, code-compliant connections between your INSWITCH II™ driver/dimmer and Illuminiche LED light channels. Available in two options — a basic 25 ft wire reel or a 25 ft plug-and-play harness reel — installers can choose the best solution for their project needs.
Options

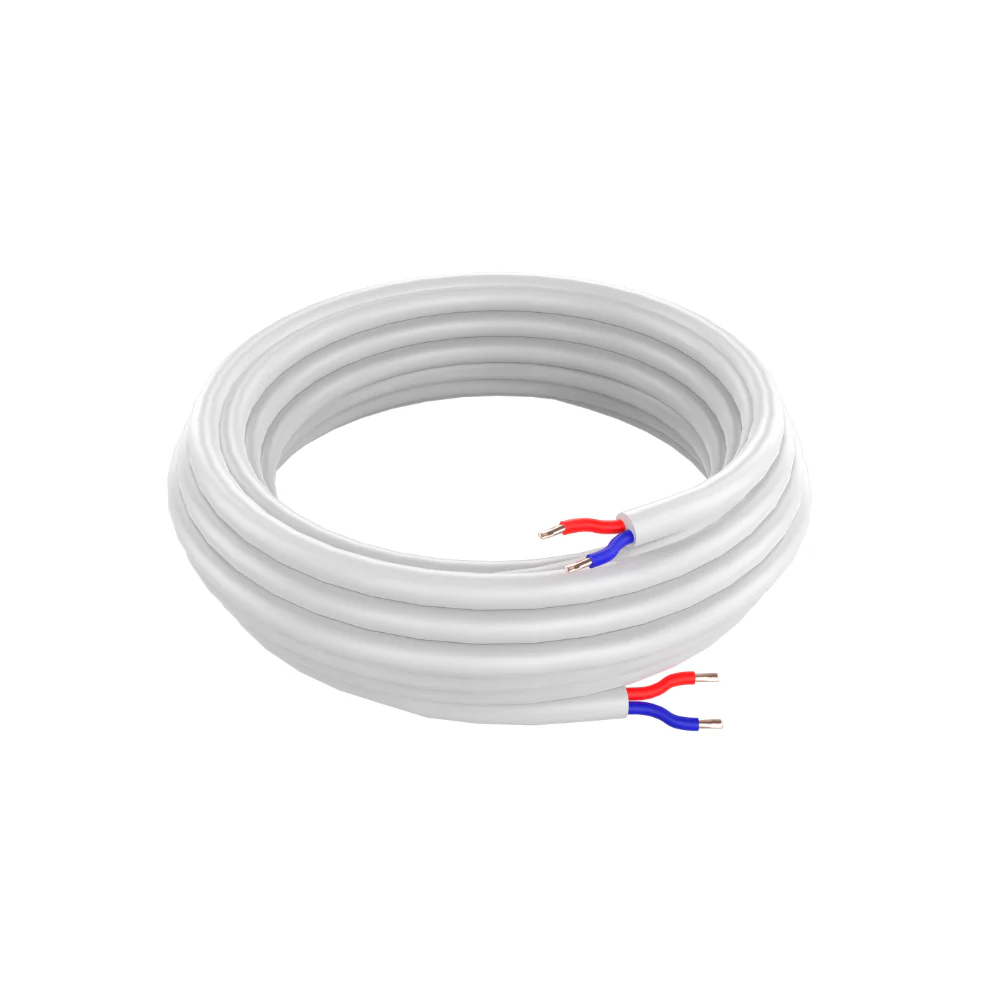

Illuminiche Wire – 25 ft (No Harness)
-
Product Details
-

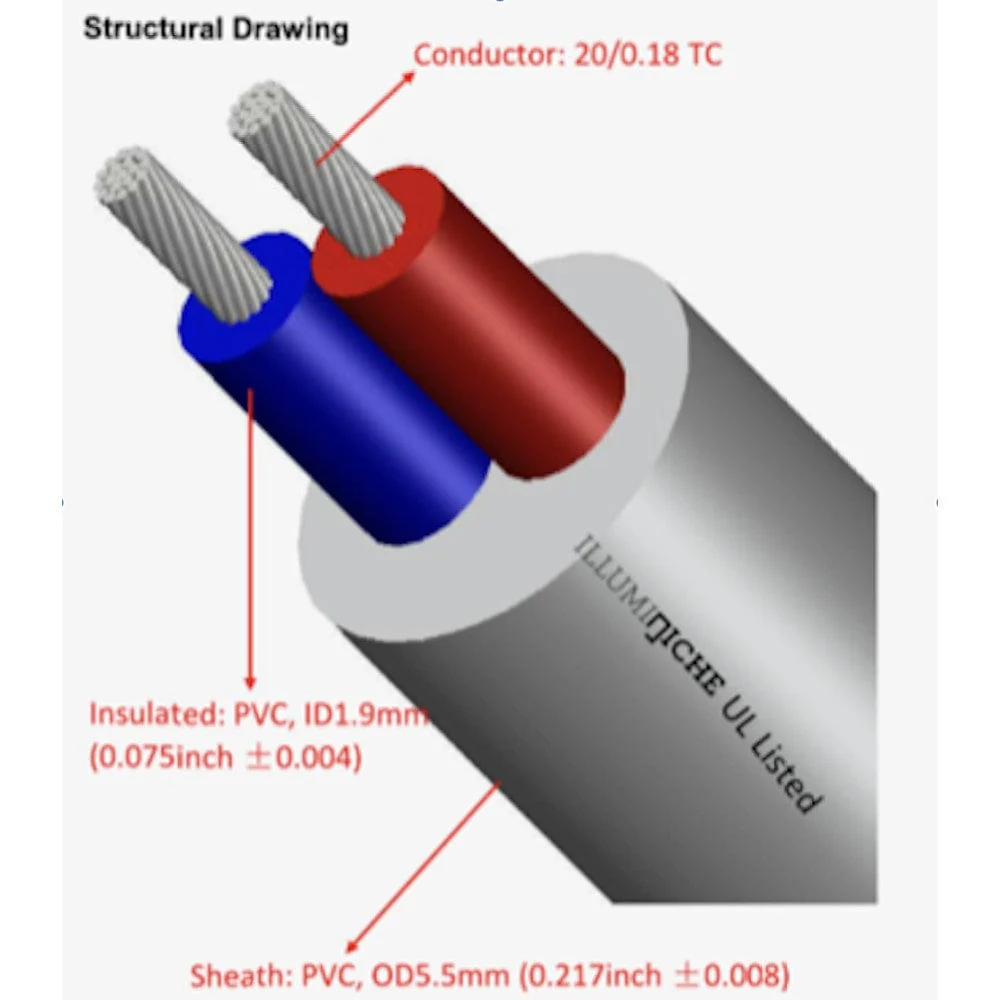

Type: 20/2 double-insulated low voltage wire.
-
Length: 25 feet.
-
Purpose: Provides seamless connection from niches or light channels to the switch.
-
Application: Safe, efficient, and reliable wiring for Illuminiche installations.
-
Benefit: Code-compliant wire designed for permanent in-wall runs.
-

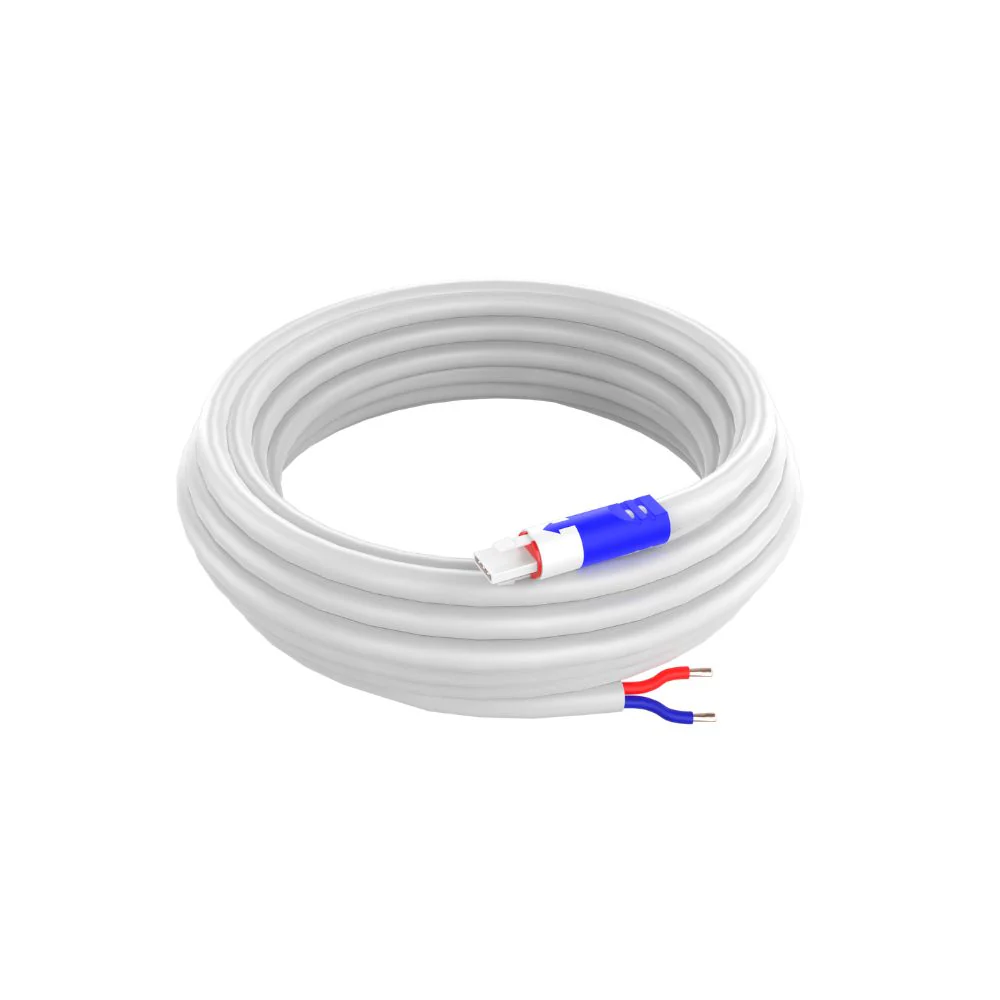

Illuminiche Wire – 25 ft (With Harness)
Product Details
-
-
Model: INWIRELV-H
-
Type: 22/2 AWG color-coded wire (UL Listed).
-
Length: 25 feet.
-
Compatibility: Designed exclusively for Illuminiche systems; matches INSWITCH II™ low-voltage outputs.
Connections:
-
One end includes a pre-attached male harness for direct plug-and-play connection.
-
Compatible with all wet location channels (niches pre-wired with 12" female harness).
-
Not compatible with dry location channels (requires different connection type).

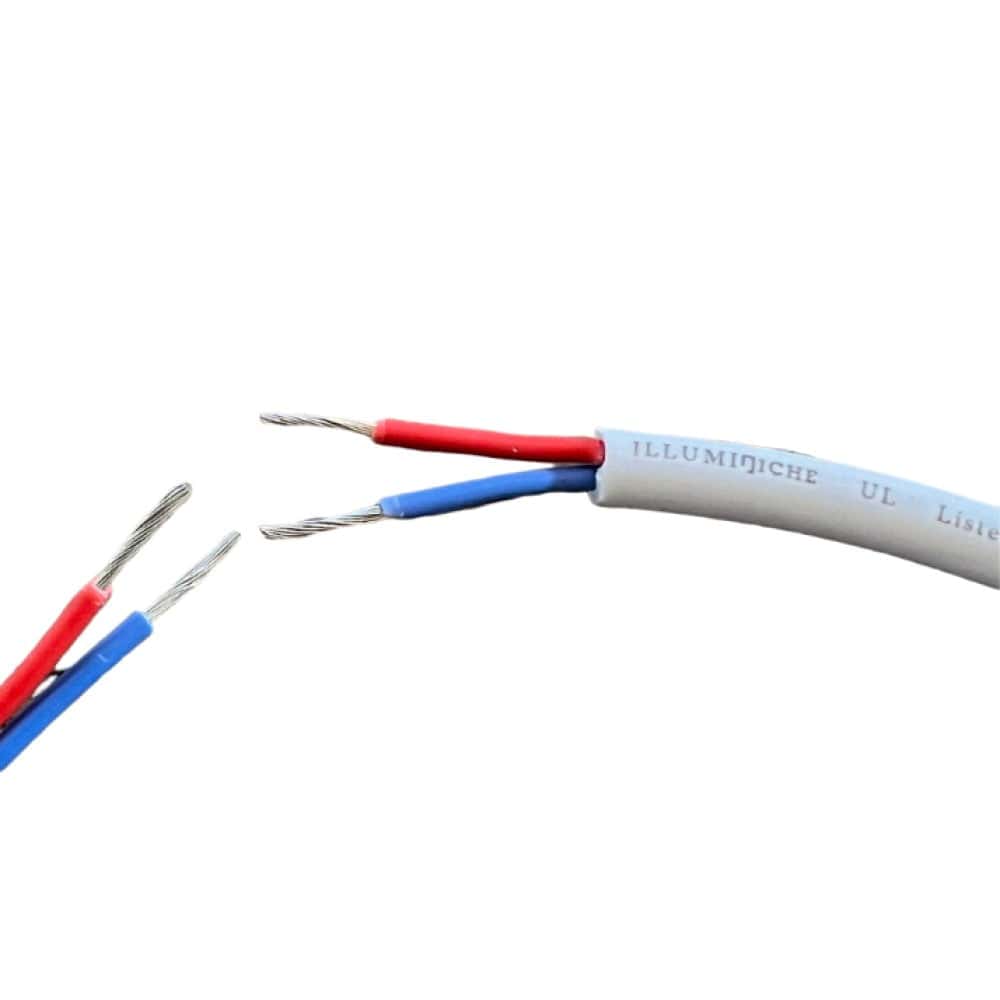

- Construction: Double-insulated, red (+) and blue (–) conductors inside a durable white jacket.Benefits: Eliminates in-wall junctions, ensures fast, reliable, tool-free connections, and simplifies installation.
-
Features & Benefits
-
Code-Compliant Safety – Double-insulated low voltage wire designed for Illuminiche LED lighting.
-
Flexible Options – Choose standard wire for permanent installs or plug-and-play harness for fast tool-free setups.
-
Installer Friendly – 25 ft length reduces junction boxes and splices, simplifying layout.
-
Durable Construction – Engineered for long-term reliability in residential and commercial applications.
-
System Compatible – Designed specifically for Illuminiche niches and light channels.
Specifications
| Specification | 25 ft Wire (No Harness) | 25 ft Wire (With Harness – INWIRELV-H) |
|---|---|---|
| Length | 25 ft | 25 ft |
| Wire Type | 20/2 double-insulated | 22/2 AWG UL Listed, double-insulated |
| Color Coding | Not color-coded | Red (+), Blue (–) |
| End Connections | None | Pre-attached male harness (plug-and-play) |
| Channel Compatibility | All niches/light channels | Wet location channels with 12" female harness |
| Application | Standard low-voltage runs | Plug-and-play, tool-free connections |
| Compliance | Code-compliant, safe installs | Code-compliant, UL Listed |
